BDM9.325
BEIJIANG

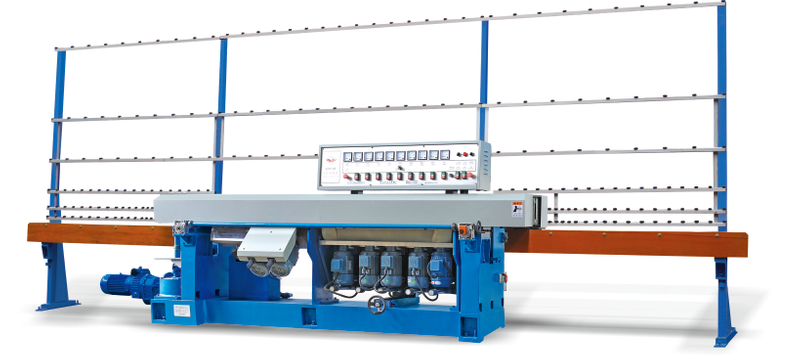

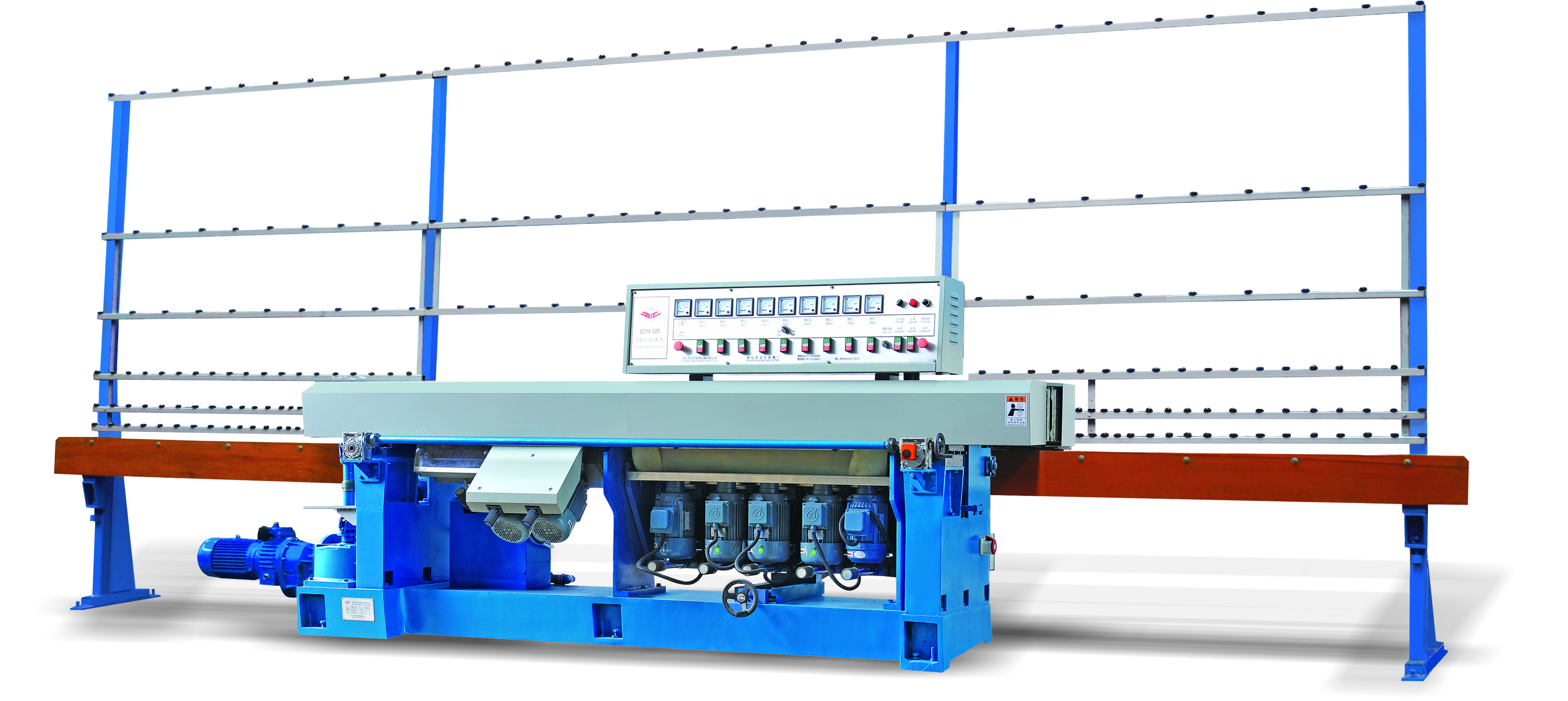

BDM9.325 Glass Angle Changing Edging Machine | 9 Spindles Glass Bevel Edger
The Beijiang BDM9.325 Glass Angle Changing Edging Machine is a high-performance 9-spindle glass bevel processing equipment. The whole machine adopts HT250 high-strength cast iron frame with excellent shock absorption and rigid structure, ensuring no deformation during long-term continuous operation and maintaining permanent processing accuracy. Equipped with high-quality standard motors and premium matching parts, the machine features stable operation, low failure rate and long service life.
This machine comes with standard manual control and 5-motor integral angle changing system, supporting multi-stage angle adjustment from 0° to 45°. It completes full-process processing including glass bevel rough grinding, fine grinding, polishing, and front & rear arris finishing in one feeding pass. Industrial PLC touch screen control system is available as an upgraded optional configuration, specially designed for high-end standardized and mass production. It supports digital parameter setting, multi-group processing formula storage and real-time equipment operation monitoring, allowing one-click parameter recall without repeated manual debugging. It effectively reduces manual errors, improves processing consistency and greatly boosts production efficiency, ideal for high-precision and large-volume glass deep processing. Widely used for tempered glass, furniture glass, shower glass, decorative art glass and mirror glass processing.
✅ HT250 Cast Iron Body for Stable Precision
Built with industrial-grade HT250 cast iron base, the machine absorbs grinding vibration efficiently and avoids structural deformation under long-hour continuous working conditions, ensuring stable and consistent machining accuracy for industrial mass production.
✅ Professional 9-Spindle Reasonable Layout
Equipped with a scientific spindle arrangement: 2 diamond wheels for rough bevel grinding, resin wheels for fine grinding, 2-level polishing wheels for fine finishing, and independent front & rear arris grinding & polishing spindles. All processes from rough grinding to mirror polishing are finished in one pass, delivering uniform grinding lines and perfect mirror bevel effect.
✅ Dual Control Modes Optional (Manual / PLC Intelligent Upgrade)
The standard manual 5-motor integral angle adjustment system features synchronous linkage, simple operation and precise unified angles, fully meeting conventional processing needs. The optional upgraded PLC touch screen intelligent control system supports one-click intelligent operation, multi-specification processing parameter storage and automatic angle data memory. It minimizes manual debugging errors, unifies batch processing precision, stabilizes product quality, saves massive machine adjustment time and greatly improves factory productivity.
✅ Ultra-Wide Processing Compatibility
Applicable for glass thickness from 3mm to 25mm. It processes small glass sheets of 80×80mm and large sheets up to 3000×3000mm, compatible with various glass sizes and diverse processing demands.
✅ Adjustable Working Speed for High Efficiency
Feeding speed adjustable from 0.5m/min to 5m/min, flexible to switch between high-precision fine polishing and high-volume mass production, balancing excellent accuracy and production capacity.
✅ Specialized Wear-Resistant Grinding Wheel Configuration
Adopts differentiated wheel configuration: Φ150mm professional wheels for bevel processing and Φ130mm dedicated wheels for arris chamfering. Clear process division ensures uniform wear, strong durability, high finished product brightness, smooth and flawless edges, and higher yield rate.
Model: BDM9.325-GLASS ANGLE CHANGING EDGING MACHINE
Spindles: 9 Spindles
Control Mode: Standard Manual Control (5-motor whole machine angle changing) / Optional PLC Touch Screen Intelligent Control System
Voltage/Frequency: 380V/220V/415V, 50Hz/60Hz (Customizable)
Working Speed: 0.5–5m/min
Min. Processable Glass Size: 80×80mm (Angle≥45°, Thickness≤25mm)
Max. Processable Glass Size: 3000×3000mm
Glass Thickness Range: 3–25mm
Adjustable Bevel Angle: 0°–45° Multi-stage Adjustable
Max. Grinding Allowance: 2.5mm
Total Power: 22.8KW
Worktable Height: 850mm
Machine Weight: 3000KG
Overall Dimension: 6600×1100×2600mm
1. Φ150mm Diamond Wheel – Mitering Edge Rough Grinding
2. Φ150mm Diamond Wheel – Mitering Edge Rough Grinding
3. Φ150mm Resin Wheel – Mitering Edge Fine Grinding
4. Φ150mm Polishing Wheel (10S40) – Mitering Edge Primary Polishing
5. Φ150mm Polishing Wheel (10S60) – Mitering Edge Fine Polishing
6. Φ130mm Resin Wheel – Front Arris Grinding
7. Φ130mm Polishing Wheel (10S40) – Front Arris Polishing
8. Φ130mm Resin Wheel – Rear Arris Grinding
9. Φ130mm Polishing Wheel (10S40) – Rear Arris Polishing
Packing Method: Packed in 1 standard wooden case, Overall Package Size: 3700×1250×1750mm
Suitable for bevel grinding, chamfering and mirror polishing of tempered glass, furniture tabletop glass, shower room glass, architectural decorative glass, mirror glass and other deep-processed glass products. It is an ideal core processing equipment for glass deep processing factories.
