Availability: | |
---|---|
Quantity: | |

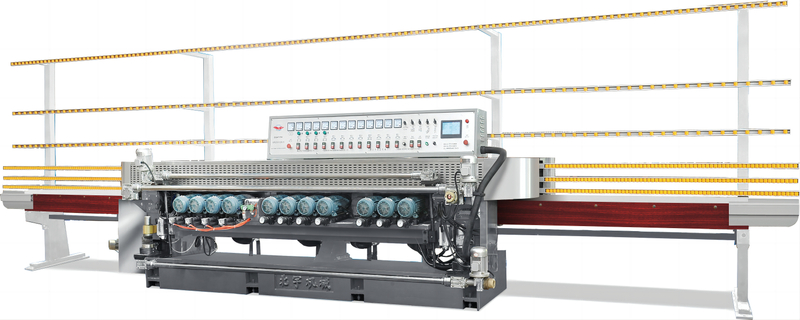

This machine is suitable for rough grinding, semi-fine grinding, fine grinding, polishing and grinding of round bottom edge of flat glass.The machine adopts chainless rolling conveying glass, with stable transmission and high grinding precision; the main drive adopts frequency conversion speed regulation, and the front beam can be raised and lowered; it adopts LCD screen display, which can preset the thickness of the glass to be processed, the width of the inclined plane and the thickness of the remaining glass; Equipped with automatic and manual oil supply systems to ensure that the whole machine works under good lubrication conditions; an automatic cleaning machine is installed on the rear beam to clean the rear pressure transmission plate.This machine has the advantages of wide processing range, high degree of automation, stable performance and high processing efficiency.
Main Specifications | |
Feed rate: | 0~6(m/min) |
Bevel angle: | 3~45° |
Bevel Width: | 60(mm) |
glass thickness: | 3~19(mm) |
Maximum glass: | 3000x3000(mm) |
Minimum glass: | 25x25(mm) |
Total power: | 27.62kw |
gross weight: | 7750kg |
Rail height: | 840mm |
Dimensions: | 8320x1450x2300(mm) |
This machine is suitable for rough grinding, semi-fine grinding, fine grinding, polishing and grinding of round bottom edge of flat glass.The machine adopts chainless rolling conveying glass, with stable transmission and high grinding precision; the main drive adopts frequency conversion speed regulation, and the front beam can be raised and lowered; it adopts LCD screen display, which can preset the thickness of the glass to be processed, the width of the inclined plane and the thickness of the remaining glass; Equipped with automatic and manual oil supply systems to ensure that the whole machine works under good lubrication conditions; an automatic cleaning machine is installed on the rear beam to clean the rear pressure transmission plate.This machine has the advantages of wide processing range, high degree of automation, stable performance and high processing efficiency.
Main Specifications | |
Feed rate: | 0~6(m/min) |
Bevel angle: | 3~45° |
Bevel Width: | 60(mm) |
glass thickness: | 3~19(mm) |
Maximum glass: | 3000x3000(mm) |
Minimum glass: | 25x25(mm) |
Total power: | 27.62kw |
gross weight: | 7750kg |
Rail height: | 840mm |
Dimensions: | 8320x1450x2300(mm) |
