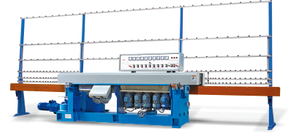

BDM9.325
BEIJIANG

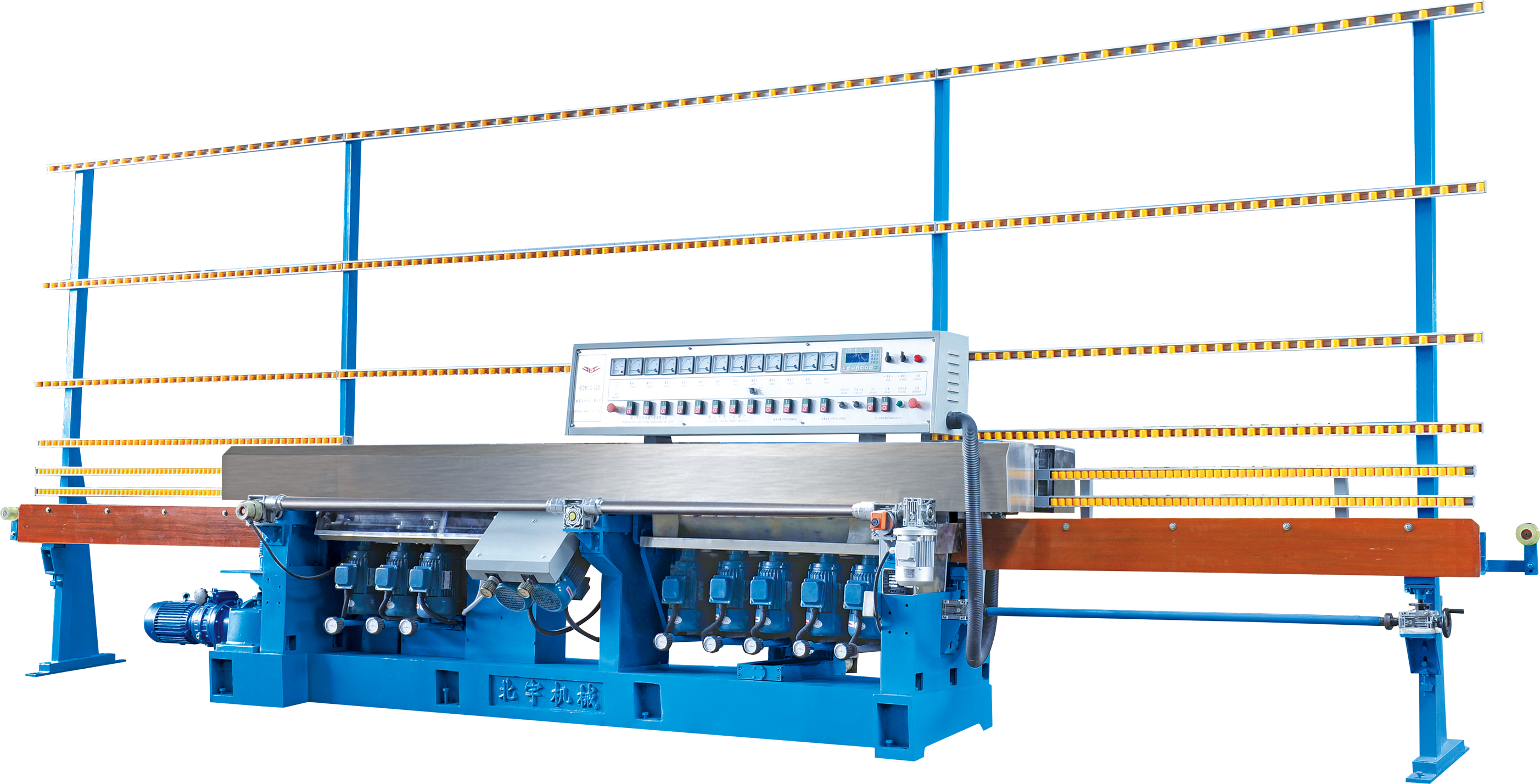

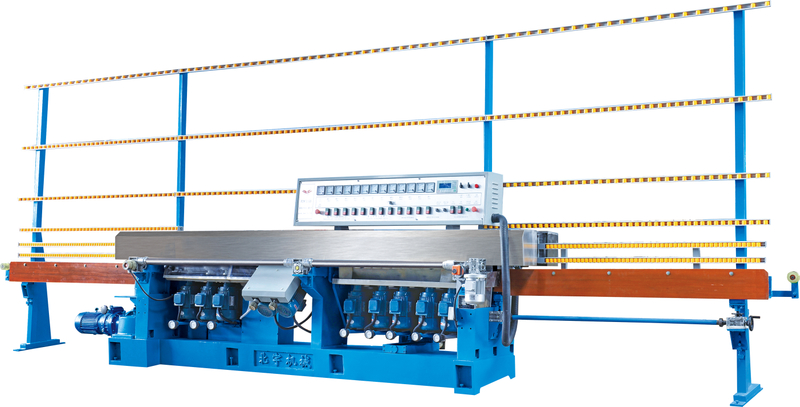

Foshan Beijiang BDM12.325 glass angle changing edging machine is equipped with 12 spindles. The whole machine adopts HT250 cast iron frame with strong rigidity and excellent shock absorption, maintaining stable machining accuracy during long-term operation. Fitted with high-quality domestic motors and premium spare parts, it runs steadily with long service life.
The standard version is equipped with manual control, with two optional whole-machine angle adjustment structures: 5 motors or 7 motors, supporting multi-stage angle processing from 0° to 45°.
Optional Upgrade: PLC touch screen control system, which realizes digital parameter setting, angle memory and equipment operation monitoring for simpler operation and higher processing consistency.
One single feeding completes full grinding & polishing procedures including bevel edges, front & rear arrises and flat edges. Widely used for processing architectural glass, furniture glass, shower glass, decorative art glass and mirror glass.
✅ HT250 Cast Iron Base
High-strength cast iron structure absorbs grinding vibration effectively, keeping consistent precision under long-hour continuous operation.
✅ Multifunctional 12-Spindle Integrated Layout
The first 9 spindles handle bevel edges and front/rear arrises, while the last 3 spindles are dedicated to flat edge grinding and polishing. Rough grinding, fine grinding and mirror polishing can be finished in one pass, realizing multi-purpose processing with one machine.
✅ Whole-Machine Angle Adjustment with 5/7 Optional Motors
Synchronous frame angle adjustment design for easy operation and uniform bevel angles. Optional PLC touch screen intelligent control stores multiple groups of processing parameters and reduces manual debugging errors.
✅ Wide Processing Compatibility
Suitable for glass thickness from 3mm to 25mm, compatible with small and large glass sheets.
✅ Adjustable Working Speed 0.5–5m/min
Flexible for mass production and high-precision fine polishing demands.
✅ Classified Specialized Grinding Wheels
Φ150mm wheels for bevel & flat edge processing, Φ130mm wheels for arris finishing. Clear process division delivers high-gloss finished surfaces.
Model: BDM12.325-GLASS ANGLE CHANGING EDGING MACHINE
Spindles: 12 spindles
Control Mode: Standard manual control, angle adjustment with optional 5 motors / 7 motors; PLC touch screen control system optional
Voltage & Frequency: 380V/220V/415V, 50Hz/60Hz (customizable)
Working Speed: 0.5–5 m/min
Min. Processable Glass: 80×80 mm (angle≥45°, thickness ≤25 mm)
Max. Processable Glass: 3000×3000 mm
Glass Thickness Range: 3–25 mm
Adjustable Bevel Angle: 0°–45°
Max. Grinding Allowance: 2.5 mm
Total Power: 29.4 kw
Worktable Height: 850 mm
Net Weight: 3800 kg
Overall Dimension: 7250×1100×2600 mm
Φ150mm Diamond Wheel – Mitering edge rough grinding
Φ150mm Diamond Wheel – Mitering edge rough grinding
Φ150mm Resin Wheel – Mitering edge fine grinding
Φ150mm Polishing Wheel (10S40) – Mitering edge polishing
Φ150mm Polishing Wheel (10S60) – Mitering edge fine polishing
Φ130mm Resin Wheel – Front arris grinding
Φ130mm Polishing Wheel (10S40) – Front arris polishing
Φ130mm Resin Wheel – Rear arris grinding
Φ130mm Polishing Wheel (10S40) – Rear arris polishing
Φ150mm Diamond Wheel – Flat edge rough grinding
Φ150mm Resin Wheel – Flat edge fine grinding
Φ150mm Polishing Wheel – Flat edge polishing
Packed with export standard wooden case, overall packing size: 5000×1400×1900mm.
It realizes integrated continuous grinding and polishing for bevel edges, arrises and flat edges on tempered glass, furniture table glass, shower room glass, decorative glass and mirror glass. It is the mainstream core processing equipment for medium and large glass deep processing factories.
